Presser Foot Replacement, all but Em-1010

PUBLISHED


Step 1 – Remove Ricoma Cover by sliding it to the Left or Right.

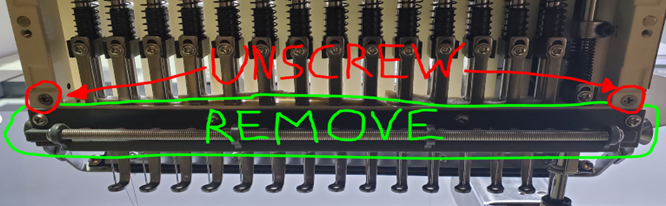

Step 2 – Remove presser foot cover by unscrewing the two screws on each side.






Step 3 – Remove needle and needle holder assembly by removing the small screw.

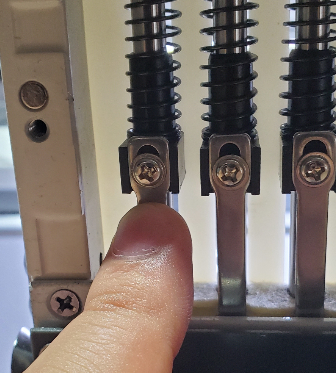

Step 4 – Replace the Presser foot by removing the screw that holds it.


Follow the steps backwards to put the get the machine ready to embroider.
