DTF 2402T : White ink cycle

Why Performing White Ink Cycles is Essential for Your DTF Printer

Maintaining a consistent and high-quality print output is key to successful Direct-to-Film (DTF) printing, and one of the most crucial steps in achieving this is performing regular white ink cycles. White ink, primarily used as a base layer, is prone to clogging and settling in the printer's system if not properly maintained. Skipping this step can lead to inconsistent prints, clogged nozzles, and even damage to your printer. In this article, we’ll dive into why regularly running white ink cycles is vital to ensuring the longevity of your DTF printer, the quality of your prints, and the overall efficiency of your production process.

White DTF ink needs to be mixed more frequently than color inks due to its unique composition and behavior. Unlike colored inks, which tend to remain in a more stable liquid state, white ink contains a higher concentration of pigments and solids. Over time, these particles can settle at the bottom of the ink cartridges or lines, causing the ink to become thicker and more prone to clogging.

When white ink sits idle in the printer, it can separate and form a thick sludge, which affects its flow through the print head. If not properly mixed, this can lead to inconsistent prints, poor adhesion, and even damage to the print head. Frequent mixing ensures that the white ink stays well-distributed, maintaining proper viscosity and consistency for smooth printing.

• How to Run the White Ink Cycles

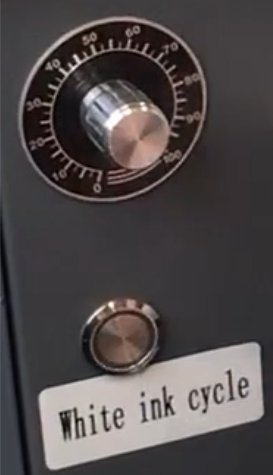

Rotate the silver knob located by your ink tanks to the required speed using the intervals below, completing each step consecutively. Press the silver button to begin each cycle:

1. 1. Start with a cycle at 70% speed.

   2. Next, run another cycle at 50% speed.

   3. Finally, complete the cycle at 30% speed.

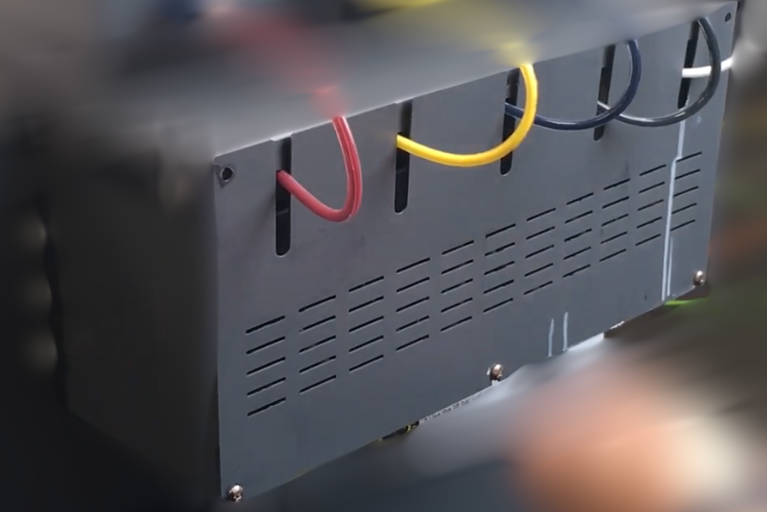

• You can confirm that the white ink cycle motor is engaging properly by checking for a visible light underneath the small cover shown below. When the motor is engaged, you should be able to see a light shining through this cover and hear the motor running.

If you don’t see the light or hear the motor engaging, follow these steps:

1. Check the Printer’s Power Source: Ensure the printer is powered on and properly connected.

2. Inspect for Obstructions: Make sure no blockages or obstructions are preventing the motor from functioning.

3. Check the Ink Cycle Settings: Verify that the white ink cycle is properly turned on using the knob. It will not engage at 0.

4. Perform a Manual Reset: Try turning the printer off and on again to reset the system, which may help reset the motor.

5. Contact Support: If the motor still doesn’t engage, it may indicate a mechanical or electrical issue, and you should contact customer support for further assistance.
